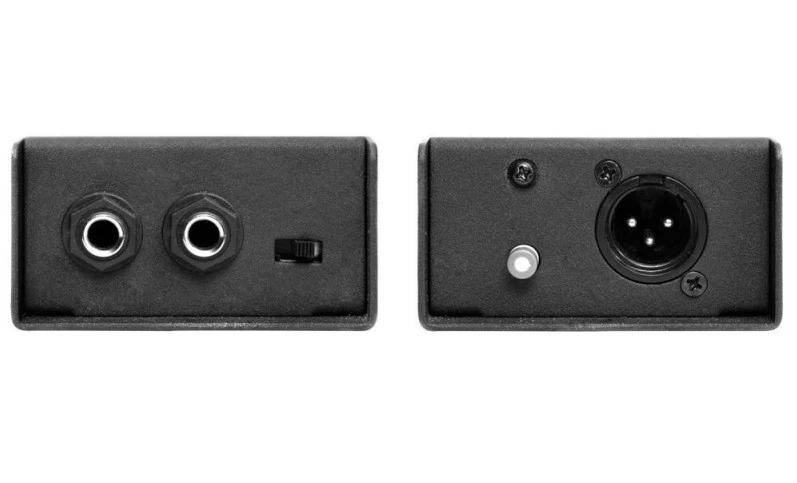

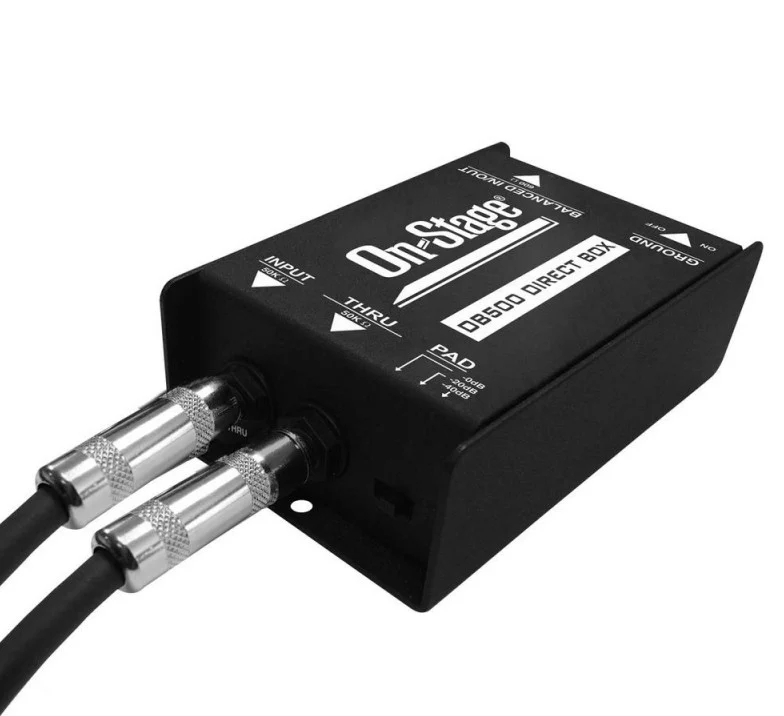

On-Stage DB500 Passive DI Box

The DB500 is a rugged built, single channel, passive direct box. It will transform any high-impedence ¼" source into a low-impedence (XLR) signal ready to be sent long distances to a mixing board or recording console. Its passive design features a high-quality transformer, ground lift switch, and does not require batteries or phantom power. Perfect for bass, acoustic guitars, keyboards and DJ equipment.

• Unbalanced Input Impedance: 50K Ohms
• Thru Impedance: 50K Ohms
• Balanced In/Out Impedance: 600K Ohms
• Frequency Response: 10-40kHz
• Input Pad: 0, -20dB, -40dB
• Dimensions: 4¾" x 3" x 1½"
• Weight: 0.97 lbs.
• Construction: All metal
